Zebra Printer Faded Print & Darkness Setting Too Light Fix

Introduction

Zebra thermal printers are the undisputed workhorses of the. Logistics, manufacturing, and healthcare industries.

They are relied upon to produce millions of. Crisp, highly readable barcodes and shipping labels daily.

However, one of the most pervasive issues users. Encounter is a sudden.

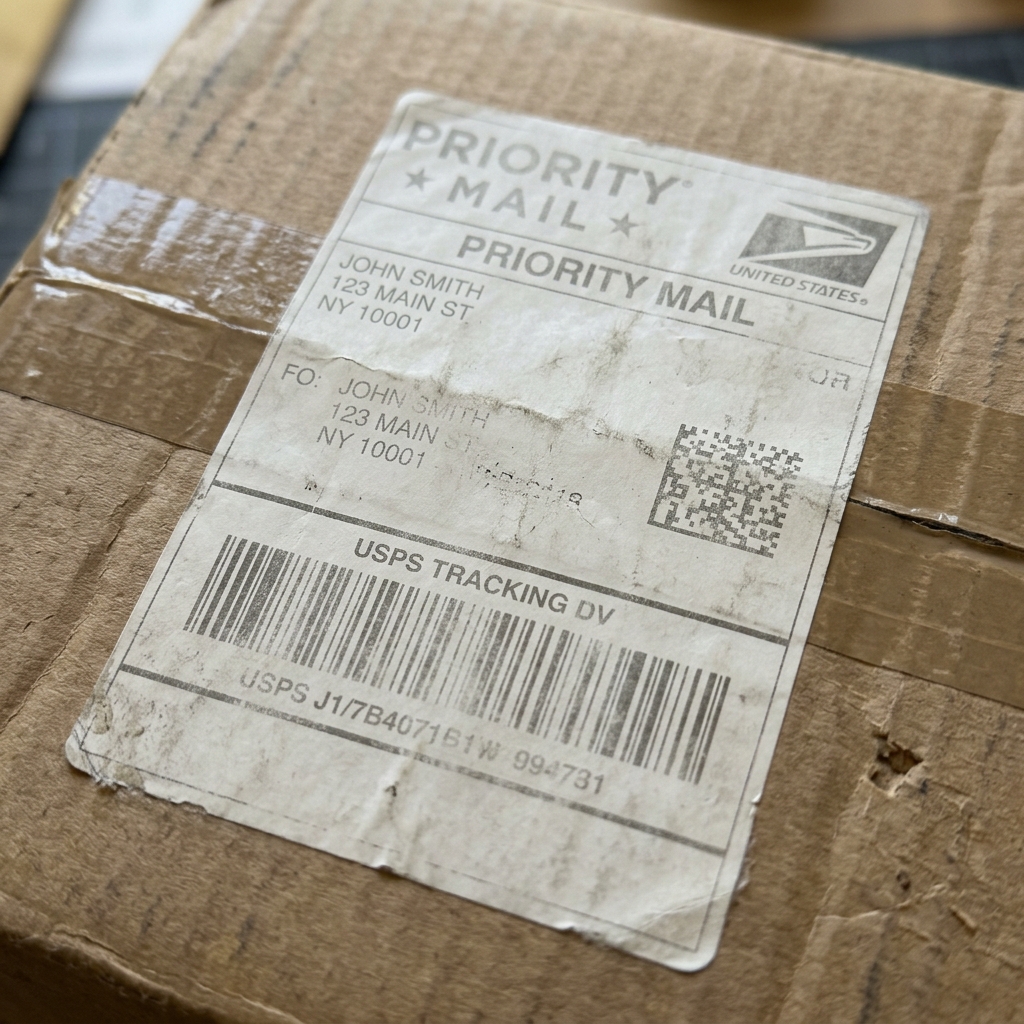

Or gradual degradation in print. Quality, resulting in faded, washed-out, or illegible labels.

A faded label is more than just an. Aesthetic issue; it can disrupt entire supply.

Chains, cause packages to be. Misrouted, and lead to compliance failures in healthcare settings.

When barcodes cannot be scanned.

The problem of faded print on a Zebra. Printer (such as the.

ZT411, GK420d, or ZM400) is rarely a fatal machine failure. It is almost always a combination of incorrect settings.

Settings, mismatched media, or simple lack of maintenance. The thermal printing process—whether direct thermal.

Or thermal transfer—relies on a precise balance of. Heat application (darkness), print speed, and media support.

This full guide will dissect the causes of. Faded Zebra prints, walk you through a step-by-step.

Resolution process adjusting both software settings. And hardware parts, and give advanced fixing strategies.

To ensure your barcodes remain dark, sharp, and perfectly scannable.

Why This Happens

To understand why faded print. Occurs, you must understand how Zebra printers create an image.

Direct Thermalprinting, the printhead applies heat directly to chemically treated. Paper, causing it to darken.

Thermal Transferprinting, the printhead heats a. Ribbon, melting the ink onto standard labels.

If this heat transfer is insufficient. Or inconsistent, the print will be faded.

• Incorrect Darkness Settings:The most common culprit. The darkness setting controls how much electrical energy. (and thus heat) is applied to the printhead elements. If it is set too low for the. Specific label or ribbon being. Used, the image will be light.
• Excessive Print Speed:Thermal transfer requires time. , 10 inches per. Second), the printhead elements do not have enough. Time to reach the required heat to fully. Melt the ribbon ink. Or activate the thermal paper before the label moves past.
• Media and Ribbon Mismatch:In thermal transfer printing, the ribbon. And the label material must be compatible. Using a hard resin ribbon on a standard. Paper label requires immense heat;. If the heat isn't high. Enough, the print will be faint and easily scratch off. Using cheap, degraded, or old direct thermal labels. Will also yield poor, faded results regardless of printer settings.
• Printhead Contamination or Wear:Over time, adhesive residue, paper. Dust, and melted ribbon ink accumulate on the. Printhead heating elements. This creates a thermal. Barrier, preventing heat from reaching the label. Furthermore, printheads eventually wear out; a physically worn. Printhead cannot generate enough. Heat, resulting in uneven or universally faded print.

Step-by-Step Fix

Resolving faded print requires a systematic. Approach, starting with the simplest software adjustments. And moving to physical maintenance. Follow these steps in order.

1. Clean the Printhead:Before changing any settings, you must ensure the. Printhead is clean. Turn off the printer. Open the printhead mechanism. Use a Zebra printhead cleaning pen. Or a lint-free cloth lightly saturated with 99% isopropyl alcohol. Gently wipe back and forth across the brown. Strip on the printhead. You will likely see black residue on the cloth. Continue wiping until the cloth comes away clean. Allow it to dry completely.
2. Adjust the Darkness Setting via the Control Panel:On printers with an LCD screen (like the ZT. Series), press the Menu. Button, navigate to the Print or Settings menu, and select DarknessThe value usually ranges from 0 to 30. Increase the darkness by increments of 2 or 3. Run a test print (Pause + Cancel buttons. Simultaneously on many models, or via the menu). Do not max out the darkness right. Away, as this dramatically shortens printhead life.
3. Adjust the Print Speed:If increasing the darkness slightly doesn't resolve the. Issue, check the print speed. Navigate to the Print Speed setting in the menu. Reduce the speed by 1. Or 2 inches per second (ips). Slower speeds allow for better heat. Transfer, resulting in darker, crisper text and barcodes.
4. Check Driver and Software Settings:This is a crucial step often missed. The settings in your Windows printer driver. Or your labeling software (like BarTender. Or ZebraDesigner) can override the printer's front panel settings. Open "Printers & Scanners" in. Windows, right-click your Zebra printer, select Printing Preferences. Look for the "Options" or "Advanced Setup" tab. Ensure the Darkness and Speed settings here match. What you want, or set the driver to. "Use Printer Settings".
5. Verify Media support:If you are using thermal transfer (using a. Ribbon), ensure your ribbon matches your labels. Wax ribbons are for standard paper labels. And need low heat (Darkness 10-15). Wax/Resin ribbons are for synthetic labels and need medium heat. Pure Resin ribbons need very high heat (Darkness 20-25). Using a resin ribbon on a low darkness. Setting will result in terribly faded print.
6. do a Media Calibration:Sometimes, the printer isn't tracking the label. Correctly, causing the print to start too early. Or late, which can look like fading near the edges. Run a manual media calibration from the printer. Menu (Tools > Calibrate Media) to ensure the. Sensors are correctly reading the gaps between labels.
7. Replace the Printhead (Last Resort):If you have cleaned the. Printhead, increased the darkness, slowed the. Speed, and verified your. Media, yet the print is still universally faded. Or has distinct vertical white lines running through the. Print, the printhead elements have likely failed. The printhead is a consumable part. And will need to be replaced.

Advanced fixing

If the standard steps do not resolve the. Issue, explore these more advanced test areas.

ZPL Command Overrides:Zebra printers operate on a language called ZPL. (Zebra Programming Language). If your ERP system.

Or custom software is sending hardcoded ZPL commands. To the printer, it might include the '~SD'. (Set Darkness) or '^PR' (Print Rate) commands within.

The code of every label. This means no matter what you set on.

The front panel or. Driver, the software command overrides it upon printing.

You must capture the raw ZPL code being. Sent to the printer.

And inspect it for these override. Commands, then adjust the source software accordingly.

Power Supply Issues:The printhead requires a big. And stable draw of current to heat up rapidly.

If the printer's internal power supply is. Failing, or if it is plugged into a.

Power strip with too many other high-draw. Devices, it may not be delivering enough voltage.

To the printhead during the print cycle. Try plugging the printer directly into a dedicated wall outlet.

Platen Roller Inspection:The platen roller is the rubber roller sitting. Directly underneath the printhead.

Its job is to give. Firm, even pressure against the printhead.

Over time, this rubber can. Harden, glaze over, or become pitted.

If the platen roller is. Worn, it will not press the label firmly.

Against the heating elements, resulting in faded. Patches, particularly in the center.

Or along one edge of the label. Inspect the roller for wear and replace if needed.
