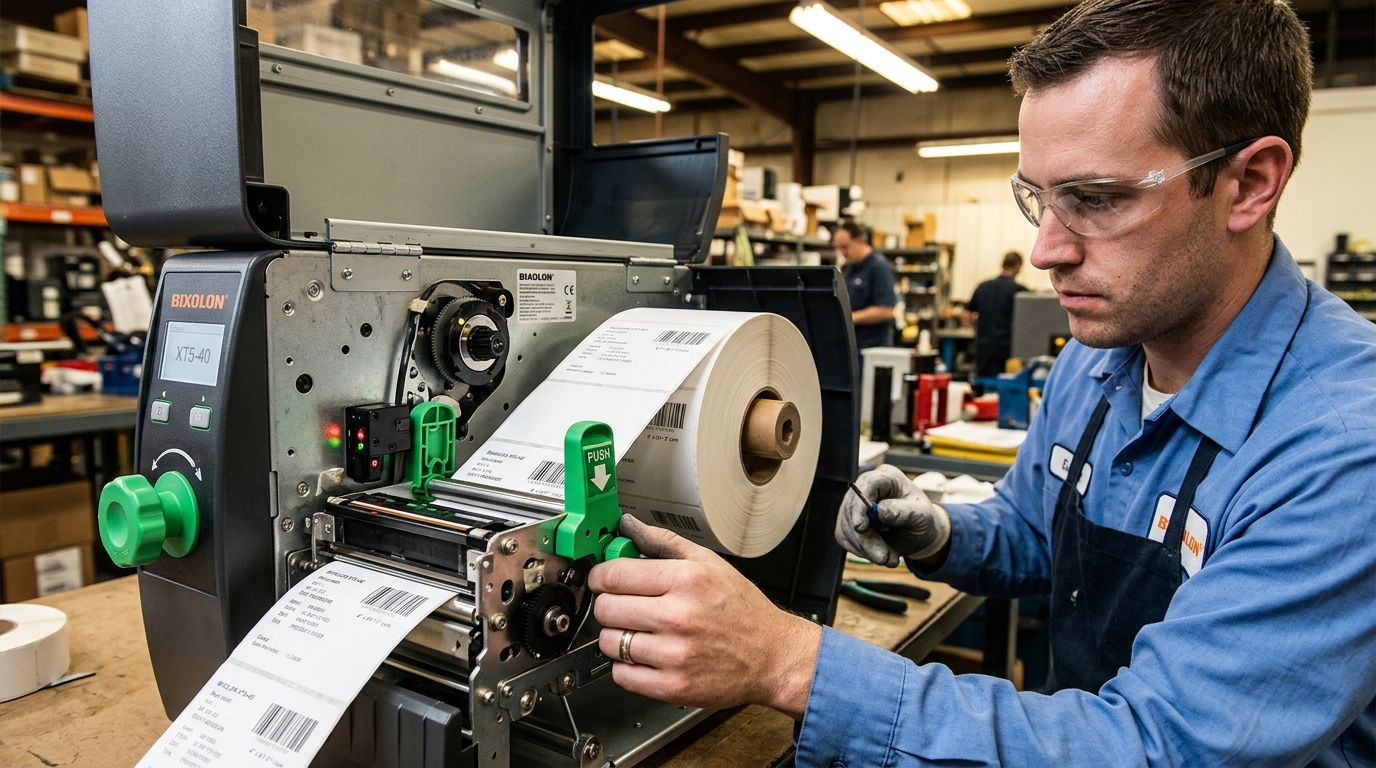

How to Calibrate a Bixolon Label Printer

The Quick Answer

If your Bixolon label printer is printing across boundaries or feeding blank labels, it needs calibration. Learn how to calibrate gap and black mark media for models like the XD5-40 and XD3-40.

If your Bixolon label printer is printing across label boundaries, skipping labels, printing in the wrong position, or feeding several labels for one print job, calibration is what fixes it. Calibration teaches the printer where each label starts and ends on your specific media — and it has to be re-run whenever you change media type, brand, or dimensions.

Here's how to calibrate correctly, whether you're using gap-separated labels or black-mark-marked continuous media.

Which Type of Calibration Do You Need?

Two different calibration modes exist because there are two different ways label media handles positioning:

Gap sensor calibration — for standard label rolls where each label is separated by a small gap (visible as a thin transparent strip between labels). Most retail and shipping label rolls use this format.

Black mark sensor calibration — for continuous media that has a printed black mark on the back at each label boundary. Common on receipt-style label rolls and specialty industrial labels.

How to tell which you have:

• Peel back a small section of the top layer. If you see a clear liner between distinct labels: gap media
• If the label stock is continuous with periodic black stripes on the back: black mark media
• If neither: continuous media without position markers (label size must be set manually, no auto-calibration used)

Running the wrong calibration mode for your media type will fail — this is one of the most common reasons calibration "doesn't work" for people.

Before Calibrating

Do these first for reliable results:

1. Load a fresh section of media. Torn or damaged leading edges throw off calibration. Cut a clean straight edge before starting.
2. Confirm the media is loaded correctly. Roll positioned in the holder, media threaded through the sensor path, cover latched firmly.
3. Clean the sensors. Dust or adhesive residue on sensors causes calibration to fail or produce wrong values. Clean gently with a cotton swab dampened in isopropyl alcohol.
4. Set the correct media type in the printer or driver settings. If the printer thinks it's using black mark media when actually it's gap media, calibration will fail regardless.

Calibration Procedure by Model

XD5-40 Series

The XD5-40 has one of the most straightforward calibration processes:

1. Enter the printer's setting menu.
2. Navigate to Sensor.
3. Select Gap Cal for standard gap-separated labels, or Black Mark Cal for continuous media with black marks.
4. Confirm — the printer feeds a length of media and automatically calibrates.
5. Verify the result by printing a test label.

If auto-calibration fails, the model also supports manual calibration through the Unified Label Utility-II software. In manual mode, you specify the sensing type, input the label length in millimeters, click Check Sensing Value, and save the optimal reading.

XD3-40 Series

Stand-alone calibration options are accessed by entering the printer's configuration mode:

1. Enter stand-alone configuration mode (button sequence varies — check your model's manual).
2. Select sequence number 2 for gap sensor auto-calibration.
3. Select sequence number 3 for black mark auto-calibration.
4. The printer feeds media and calibrates automatically.

Make sure the rollers are properly installed and media is loaded correctly before starting either mode.

XL5-40 Series

Similar to the XD5 series — access calibration through the setting menu on the printer or through the Unified Label Utility software.

Older Bixolon Label Models

Older Bixolon label printers may require calibration through the utility software rather than an on-printer menu:

1. Connect the printer to a computer via USB.
2. Launch the Bixolon Unified Label Utility (specific tool name varies by model — some use "Unified Label Utility," others use "Label Printer Utility").
3. Navigate to the calibration section.
4. Select media type (gap or black mark).
5. Trigger auto-calibration.
6. Save settings to the printer's memory when done.

Manual Calibration (When Auto Won't Work)

If auto-calibration keeps failing on unusual media — non-standard gap sizes, unusually reflective liners, semi-transparent labels — manual calibration lets you set sensor thresholds directly:

1. Connect via USB and launch Bixolon's utility software.
2. Navigate to the manual calibration option (often labeled "Manual Cal" or "Sensor Threshold").
3. Specify the sensing type (gap or black mark).
4. Enter your label's length in millimeters.
5. Click the "Check Sensing Value" or equivalent function — the printer feeds media past the sensor multiple times and returns readings.
6. Review the returned values — typically a raw sensor value at the label and at the gap/mark.
7. Set the threshold to a value between these two readings.
8. Save the calibration to the printer.

Manual calibration is more work but succeeds on media that defeats auto-calibration.

Testing Calibration Results

After calibration, verify with a real test:

1. Print a test label from the printer's own diagnostic function (usually available in the setting menu).
2. Confirm the entire test pattern prints on one label, positioned correctly within the label boundaries.
3. Print several test labels in succession — each should print on its own label, cleanly positioned.

Signs of successful calibration:

• Every label prints in the correct position
• No wasted labels between print jobs
• Print content doesn't cross label boundaries

Signs calibration didn't fully work:

• Content prints partially on one label and partially on the next
• Extra blank labels feed between prints
• Print position drifts progressively over multiple labels
• Some labels print correctly and others don't

If calibration didn't succeed, recheck media type selection and sensor cleanliness before rerunning.

When to Recalibrate

Recalibration is needed whenever:

• You change label roll brand or supplier
• Label dimensions change (even slightly)
• You switch between gap and black mark media types
• Print position starts drifting after a period of correct operation
• Sensor cleaning changes calibration values
• Firmware updates reset calibration data

Recalibration doesn't need to be done routinely — only when something changes.

Media-Type Best Practices

A few habits that make calibration more reliable long-term:

• Stick with one media brand and specification. Different brands' label rolls have slightly different gap dimensions or black mark opacity, which means recalibrating every batch change.
• Buy from vendors with consistent stock. Some suppliers change manufacturers within the same product SKU, giving you inconsistent media even when you're ordering "the same thing."
• Store media in stable conditions. Temperature and humidity affect label backing and adhesive, which can subtly change how sensors detect boundaries.
• Keep spare rolls of your working media configuration. If you're forced to switch brands mid-shift, calibration hassle is significant. Having tested backup stock saves time.

Troubleshooting Failed Calibration

If calibration attempts consistently fail:

Sensor is dirty. Even after visible cleaning, tiny residue can affect sensor readings. Clean more thoroughly, let it dry completely, retry.

Wrong media type selected. Verify the printer is set to gap media if you have gap-separated labels, or black mark if you have marked continuous media.

Sensor position is wrong for your media. On some models the sensor position is adjustable (a slider or wheel that moves the sensor across the width of the media). If the sensor isn't aligned with the gap or mark position on your specific media, calibration will fail. Consult your model's manual for how to adjust sensor position.

Media is out of spec. Some unusual media (very thin, very reflective, unusual liner materials) simply won't calibrate through auto mode. Manual calibration with the utility software is your best option, or switch to a more standard media type.

Print head lever not engaged. On many Bixolon label printers, a lever must be in the engaged position for the print head to press against the media. If the lever is released, calibration may run but the mechanism can't function correctly.
