Canon MAXIFY GX Support Codes & Error 5200 Fix
Table of Contents
🔀

Diagnostic Decision Tree: Canon MAXIFY GX Support Codes & Error 5200 Fix

Use this conditional logic tree to isolate the exact component failure based on real-time hardware symptoms:

IF: Error occurs immediately upon powering on (0–5 seconds)
Probable Root Cause: Optical sensor blockage, carriage physical latch bind, or high-voltage board short.
Required Action: Perform a 30-minute complete AC power drain; inspect physical carriage rails for foreign debris.
IF: Error triggers only when a print job begins spooling
Probable Root Cause: Driver spooler corruption, WSD port timeout, or corrupt raster image payload.
Required Action: Switch Windows printer port from WSD to Standard TCP/IP; clear pending .SPL files in spool folder.
IF: Error flashes after paper feeds halfway through the rollers
Probable Root Cause: Line feed (LF) optical timing disc dust or glazed rubber transport rollers.
Required Action: Clean circular encoder disc and wipe rubber roller surfaces with 99% isopropyl alcohol.
Quick Answer Summary

Common Canon MAXIFY GX Error Codes: Error 1000/1003 means paper is out or the cassette is not fully inserted. Error 1300/1303/1304 indicates a paper jam in the rear, front, or duplexer. Error 1430/1470 means an ink bottle was left inserted or the ink tank cap is open. Error 5100/5200 are carriage jams and overheating (clear the carriage path and let it cool). Error 5B00/1700 means the maintenance cartridge (waste ink) is full and must be replaced.

The Quick Answer

Support codes on Canon MAXIFY GX MegaTank printers signal cassette feed jams, maintenance cartridge saturation, or printhead thermal protection events. Most errors stem from exhausted maintenance cartridges (code 1726) or printhead overheating (code 5200), which occurs when empty ink tanks cause nozzles to fire dry without liquid coolant.

Canon MAXIFY GX Series Models Covered

This troubleshooting guide applies to Canon's official commercial MegaTank lineup: For troubleshooting related components, consult Canon PIXMA TS6420 Error Code List & Meaning.

  • MAXIFY GX7000 Series (GX7020, GX7021): High-volume office all-in-one with two 250-sheet paper cassettes (Cassette 1 and Cassette 2), automatic document feeder, GI-26 pigment ink, and user-replaceable MC-G01 maintenance cartridge (right side door).
  • MAXIFY GX6000 Series (GX6020, GX6021): Single 250-sheet cassette (Cassette 1) + 100-sheet rear tray, GI-26 pigment ink, and MC-G01 maintenance cartridge (right side door).
  • MAXIFY GX5000 Series (GX5020): Single-function printer with single cassette + rear tray, GI-26 pigment ink, and MC-G01 maintenance cartridge.
  • MAXIFY GX4000 Series (GX4020) & GX3000 Series (GX3020): Compact MegaTank models with front cassette + rear flat paper path, GI-26 pigment ink, and MC-G03 maintenance cartridge.
  • MAXIFY GX2000 Series (GX2020) & GX1000 Series (GX1020): Compact home-office MegaTank models using GI-25 pigment ink bottles and user-replaceable MC-G05 maintenance cartridge.

Official Canon MAXIFY GX Support Code Reference Table

The following table details support codes documented in Canon's official MAXIFY GX online technical manuals, split by series where cassette numbers differ.

Support CodeApplicable SeriesScreen Message / MeaningOfficial Action
1007GX7000 SeriesThere is no paper in cassette 1.Load paper into cassette 1, align guides, and tap OK on touch screen.
1008GX7000 SeriesThere is no paper in cassette 2.Load paper into cassette 2, align guides, and tap OK on touch screen.
1003GX6000, GX5000, GX4000, GX3000There is no paper in the cassette.Load paper into the cassette, align guides, and tap OK on touch screen.
1070All GX SeriesPaper feed roller is dirty.Execute Roller Cleaning via Setup > Maintenance on the touch screen.
1300All GX SeriesPaper is jammed.Open front cover, remove jammed sheet slowly with both hands.
1303All GX SeriesPaper jammed in rear cover.Detach rear transport unit, extract jammed sheet, reattach securely.
1725All GX SeriesMaintenance cartridge almost full.Tap OK on touch screen to continue; obtain a replacement maintenance cartridge.
1726All GX SeriesMaintenance cartridge is full.Replace maintenance cartridge with designated part (MC-G01, MC-G03, or MC-G05).
1890All GX SeriesProtective material remains.Open scanning unit, remove all orange shipping tape and transport clips.

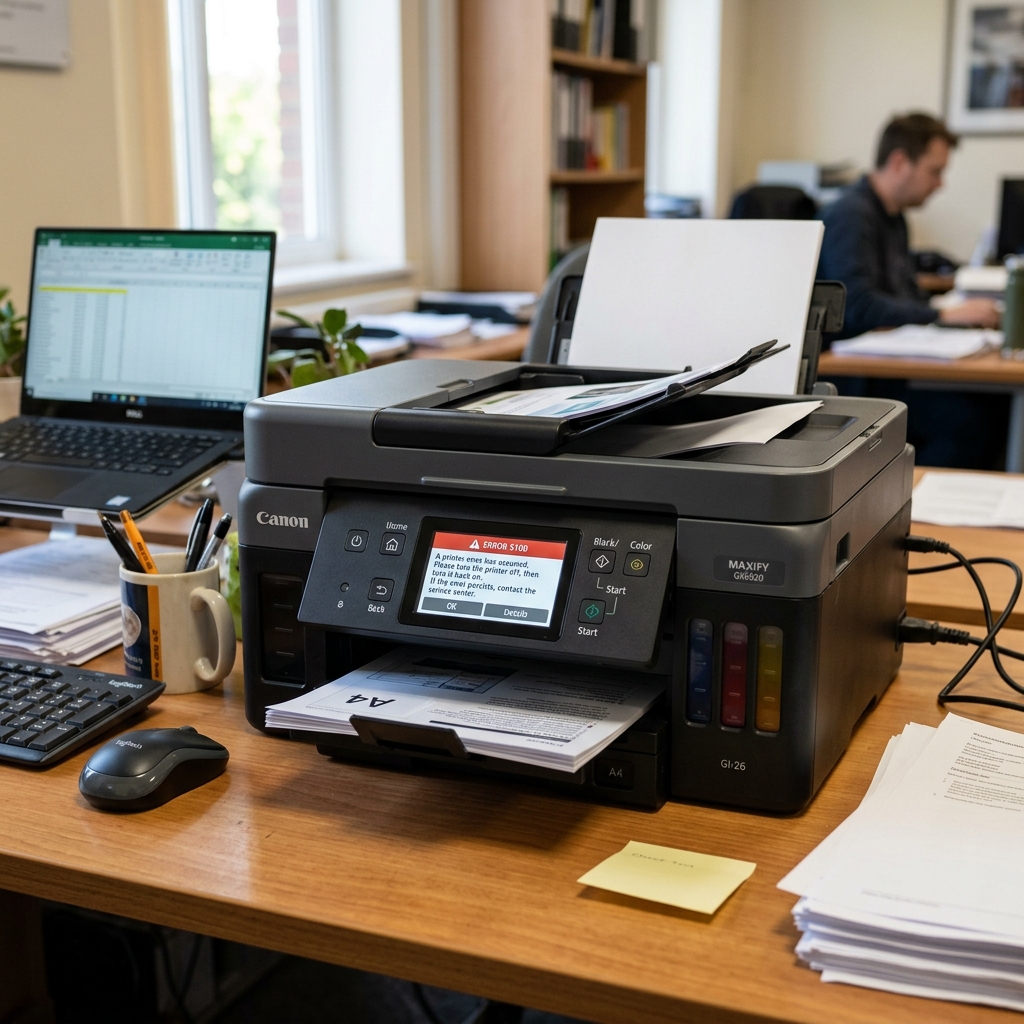

5100All GX SeriesPrinter error has occurred (Carriage error).Clear carriage path obstructions; gently clean linear timing strip if smudged.
5200All GX SeriesPrinter error has occurred (Printhead overheating).Check ink levels, unplug power cord for 10 minutes to cool down, execute Ink Flush.
6000All GX SeriesPrinter error has occurred (Line feed error).Clear paper scraps around feed rollers and timing slit disk, power cycle printer.
B506 / B508 / B509All GX SeriesPrinter error has occurred.Turn off the printer and unplug it. Plug in the printer again and turn it back on. If problem persists, contact nearest Canon service center.

For complete model-specific references, consult Canon's official manuals: GX7000 Series Support Code List, GX6000 Series Support Code List, and GX4000 Series Support Code List.

Resolving Support Code 5200 on MAXIFY GX Printers

Unlike standard cartridge printers, MAXIFY GX models continuously draw ink from large internal reservoirs through silicone tubes into a permanent printhead. Liquid ink dissipates the thermal energy produced by the microscopic resistor nozzles during firing.

If you have questions regarding continuous supply faults, review our guide to Canon MAXIFY GX ink detection and continuous supply troubleshooting.

Step-by-Step Code 5200 Resolution

  1. Check Tank Ink Levels: Look directly at the clear front windows on all four ink tanks (Black, Cyan, Magenta, Yellow). If any tank has dropped below the lower limit dot, refill it immediately with genuine Canon GI-26 pigment ink (or GI-25 for GX1020/GX2020). Never allow ink to fall below this safety marker.
  2. Execute the 10-Minute Power Cool-Down: Turn off the printer using the front Power button. Disconnect the power cord from the electrical outlet. Wait a full 10 minutes to allow the printhead ceramic plate and thermistor sensors to cool back to ambient room temperature.
  3. Inspect Ink Tubes for Air Gaps: Plug the printer back in and open the scanning unit. Inspect the transparent tubes leading to the printhead carriage. If you observe continuous air bubbles or empty sections, follow our instructions for purging air bubbles and ink tube clogs in Canon MegaTank printers.
  4. Perform an Ink Flush: On the touchscreen, tap Setup (gear icon) > Maintenance > Ink Flush. Select all colors and confirm. This forces the purge pump to pull fresh ink through the delivery lines, restoring the liquid thermal buffer to the nozzles.
  5. Verify Temperature Stabilization: Print a nozzle check pattern. If all lines print cleanly without gaps, code 5200 is resolved. If the error returns immediately upon heating up, consult our technical breakdown of Canon error 5200 overheating diagnostics.

Replacing the Maintenance Cartridge (Support Code 1726)

Support Code 1726 halts all printing operations when the user-serviceable waste ink maintenance box is saturated.

  1. Power on the printer and open the maintenance cartridge access door (located on the right side on GX6020/GX7020/GX5020, or on the rear on GX3020/GX4020/GX1020/GX2020).
  2. Loosen the coin screw securing the cartridge retaining cover.
  3. Slide the saturated maintenance cartridge straight out. Place it inside the plastic disposal bag included with your new cartridge.
  4. Slide the new maintenance cartridge (MC-G01, MC-G03, or MC-G05 depending on your model) into the guide rails until it clicks securely into place.
  5. Replace the retaining cover and tighten the screw. The printer will recognize the new EEPROM chip immediately and clear Code 1726 without requiring any service tools.

Sources

Frequently Asked Questions

Why did Support Code 5200 appear immediately after refilling my MAXIFY GX ink tanks?
Support Code 5200 is triggered by printhead thermal overload. If you allowed an ink tank to run dry before refilling it, air entered the internal ink delivery tubes. When the printhead fires without liquid ink present to dissipate heat, the thermal sensors immediately register an overheat condition. Performing an Ink Flush clears the air and restores ink cooling.
Which replacement maintenance cartridge does my Canon MAXIFY GX model use?
The Canon MAXIFY GX6020 and GX7020 use the MC-G01 maintenance cartridge. The MAXIFY GX3020, GX4020, and GX5020 use the MC-G03 maintenance cartridge. The compact MAXIFY GX1020 and GX2020 use the MC-G05 maintenance cartridge.
Can I clean out and reuse an MC-G01 maintenance cartridge to clear Support Code 1726?
No. Canon maintenance cartridges contain an integrated electronic memory chip (EEPROM) that counts absorption cycles. Even if you wash and dry the internal felt pads, the printer reads the exhausted counter on the chip and will not clear Support Code 1726 until a new cartridge with an unread chip is installed.
