The Quick Answer
Learn how to read the patterns of misaligned labels—sideways offset, vertical offset, and progressive drift—to fix the underlying cause.

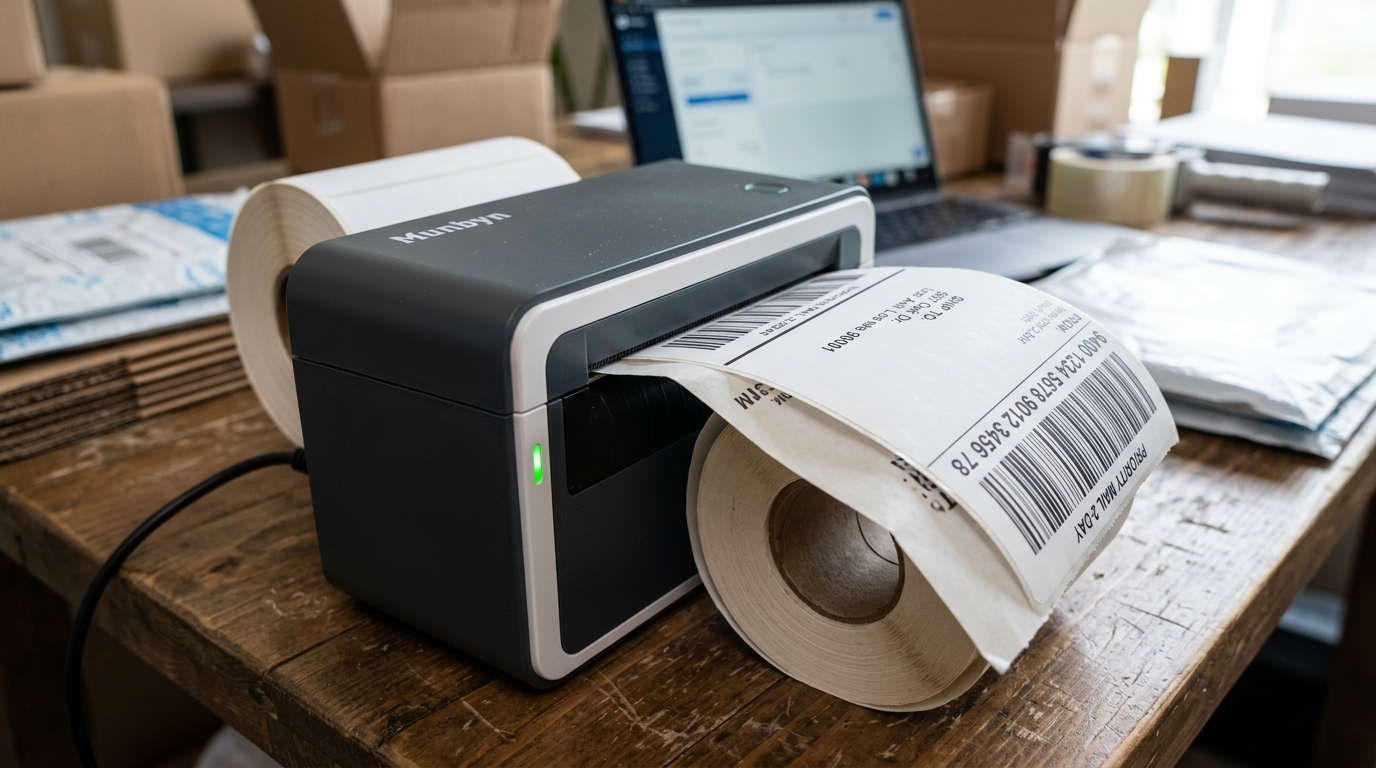

There's a special frustration reserved for a label that prints almost right. The address creeps toward one edge. The barcode starts a half-inch too low and clips off the bottom. Each label drifts a little further than the last until the print is straddling two stickers. Munbyn label misaligned printing comes in a few distinct flavors, and — good news — each flavor points straight at its own cause.
At my bench I diagnose alignment by asking one question: is the print off sideways, off vertically, or drifting worse over time? Answer that, and you already know which fix below is yours. I'll also show you a hidden driver setting that lets you nudge print position in millimeter steps — the fine-tuning tool most owners never learn exists.
Quick-Fix Summary
Match your flavor:
- Sideways offset → snug the paper guides; check label width vs. driver width.
- Vertical offset (starts too high/low) → recalibrate with 4+ labels.
- Progressive drift (worse each label) → guides, sensor cleaning, or fan-fold setup.
- Small stubborn offset after all that → the driver's offset adjustment, my uncommon tip.
Flavor 1: Print Shifted Left or Right
Sideways misalignment is mechanical ninety percent of the time. Open the lid and slide the green paper guides until they gently touch both edges of the roll — touching, not pinching. Paper should feed centered and straight, with no room to slide side to side.
While you're there, confirm the label width in your driver matches reality. Labels narrower than the driver believes (say, 4-inch driver setting with 3.5-inch labels) print content that hangs off one edge, because the printer centers its image across a width your paper doesn't have.
Why this works: The printhead prints in a fixed position; only the paper can be in the wrong place sideways. Guides lock the paper's lane. Loose guides are the number one cause of sideways problems, and I'd estimate half the "crooked" Munbyns I see just need thirty seconds of guide adjustment — the repair equivalent of tightening a picture frame.
Flavor 2: Print Starts Too High or Too Low
When every label prints shifted up or down by the same amount — content starting an inch down, or the top of the address clipped off — the printer's idea of where a label begins is wrong. That's a calibration issue.
Load at least four connected labels, hold the FEED button until one beep, release, and let the printer measure. Then check the driver's page size matches your actual label dimensions (measure with a ruler; "4x6" presets occasionally aren't).
Why this works: The printer positions the start of every print relative to the label edge its calibration detected. A stale or failed calibration shifts that reference point, and every job inherits the same offset — which is exactly why consistent vertical error means calibration, while inconsistent error means something else. Reading the pattern is half the repair.
Flavor 3: Drift That Gets Worse Label by Label
The creeping kind — first label perfect, fifth label low, tenth label split across two stickers — means the printer is losing a tiny amount of tracking on every feed, and the error compounds.
Three causes, in order of likelihood. Loose guides, again: wandering paper makes the sensor's gap detection sloppy on each label, and sloppy compounds. A dusty gap sensor: wipe the sensor window in the paper path with isopropyl alcohol on a swab (printer off and unplugged), dry, recalibrate — intermittent gap detection is the signature drift-maker. And for fan-fold users, the stack itself: the folded stack must sit directly behind the printer, level with the rear feed slot, aligned square to it. A stack on the floor while the printer sits on a desk, or a stack angled off to one side, adds sideways tension that pulls the paper slightly askew on every single feed — and "slightly, every feed" is the recipe for compounding drift.
Why this works: Compounding errors need a per-label error source, and all three of these deliver exactly that: an unsteady lane, an unreliable eye, or a constant sideways tug. Fix the per-label error and the compounding stops with it. Fan-fold placement is the one people never suspect, because the stack sits outside the printer — out of sight, out of mind, and pulling the whole time.
Flavor 4: The Hidden Offset Adjustment (My Uncommon Tip)
Now the tool for the stubborn case: guides snug, freshly calibrated, sensor clean, good labels — and the print still sits a consistent few millimeters off where you want it. Maybe your label stock's printable area is slightly non-standard. Maybe your shipping platform generates PDFs with a baked-in margin. Either way, you don't need another repair. You need a nudge.
Buried in most Munbyn Windows drivers is a print position offset — look in Printing Preferences under a tab like Page Setup, Stock, or Options for fields named Vertical Offset / Horizontal Offset, Shift, or Adjustment, measured in millimeters or fractions of an inch. Positive vertical values push the print down the label; negative pull it up (directions vary — test with one label). Adjust in 1–2 mm steps, print a test after each change, and stop the moment it lands.
Why this works: The offset shifts the printer's origin point — where it believes coordinate zero sits on the label — without touching calibration or the label file. It exists precisely because real-world labels, platforms, and printers each carry tiny built-in biases, and offset is the official knob for reconciling them. Most owners never find it because it hides two tabs deep, and most guides never mention it because it's a fine-tuning tool, not a repair. But when a customer's platform-generated labels always print 3 mm low, this knob is a ten-second permanent fix — versus editing every PDF forever. Note the values you settle on (write them on a sticky note under the printer, seriously), because a driver reinstall resets them.
When to Call a Professional
Escalate when alignment wanders even on a self-test page — hold FEED while powering on; the self-test bypasses your computer entirely, so a crooked or drifting self-test points at hardware: a worn platen roller gripping unevenly, or a failing sensor. Email Munbyn support with photos of several consecutive misaligned labels laid side by side (the progression tells their techs the story) plus the self-test. Roller and sensor faults under warranty typically end in replacement. Out of warranty, run the honest numbers against a new unit — and in the meantime, the offset adjustment from Flavor 4 can often compensate enough to keep you shipping while you decide.
FAQ
Why is my Munbyn label misaligned printing only on one side?
Sideways-only offset is almost always the paper guides sitting too wide, letting the roll drift in its lane. Snug them to just touch both edges, and confirm the driver's label width matches your actual labels.
Why does the misalignment get worse with each label?
That's compounding drift: loose guides, a dusty gap sensor, or a misaligned fan-fold stack adding a tiny error to every feed. Fix the per-label error — snug, clean, square the stack — and recalibrate.
Where do I find the offset setting in the Munbyn driver?
In Printing Preferences on Windows, usually under Page Setup, Stock, or Options — fields named Vertical/Horizontal Offset or Shift. Adjust 1–2 mm at a time and test between changes.
My labels print fine but everything sits 3 mm too low. Recalibrate?
You can, but if calibration is fresh and the offset is small and consistent, use the driver's vertical offset instead — that's exactly the situation the setting was built for.
Munbyn label misaligned printing always confesses through its pattern: sideways means guides, consistent vertical means calibration, compounding drift means sensor or fan-fold setup, and a small stubborn bias means it's time for the hidden offset knob. Read the pattern, apply its fix, and jot down your offset values — because a printer that lands every print exactly where you aimed it is a printer you get to stop thinking about.
